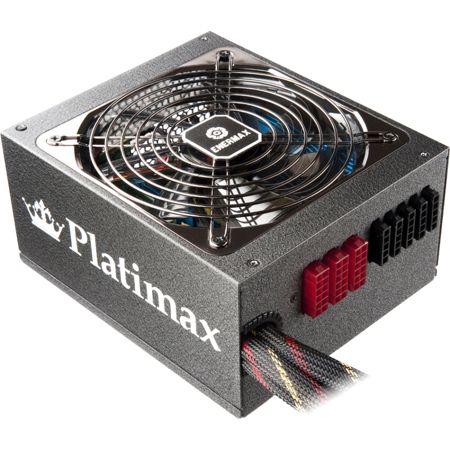

Enermax Platimax EPM850EWT ATX12V & EPS12V Power Supply Item # 473266
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
473266
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
High-performance power supply topology to use all magnetic quadrants of the main transformer and to achieve maximum efficiency and rock stable output voltage. Technological breakthrough topology using a staged dynamic transformer array for extremely high efficiency with the most durable and stable output at any load.Innovative and patented transmission technology for direct voltage transmission to reduce the wire-resistance and to increase the efficiency. It's optimized air circulation due to clear and spacious PCB design. Platimax helps systems to meet EU eco-design directive ErP/EuP Lot 6 due to improved, high-efficient standby circuitry.Stable and safe power supply thanks to up to six high-performance and massive rails each with separated over current protection (OCP). Platimax features extremely low ripple noise. It features high Enermax quality standards for leading stability and maximum durability. Innovative design boosts transformer core utilization rate and reduces overall dimension.
Product Details
| Item # | 473266 |
| Manufacturer # | PF1233 |
| number of fans | 1 |
| height | 3.4 in |
| Power Factor Correction (PFC) | Active |
| Output Voltage | 3.3 V DC @ 24 A; 5 V DC @ 24 A; 12 V DC @ 30 A; -12 V DC @ 500 mA; 5 V DC @ 3 A |
| Product Line | Platimax |
| width | 5.9 in |
| ATI CrossFire Supported | Yes |
| NVIDIA SLI Supported | Yes |
| Output Power | 850 W |
| depth | 6.9 in |
| Product Name | Platimax EPM850EWT ATX12V & EPS12V Power Supply |
| Number of +12V Rails | 4 |
| manufacturer | Enermax Technology Corporation |
| Input Voltage Range | 100 V AC to 240 V AC |
| Input Current | 11 A @ 110V; 5 A @ 220V |
| Compatibility | AMD Opteron Processor; Intel Processors:Xeon; Core Extreme i7; Core Extreme i5; Core Extreme i3 |
| weight | 3 lb |
| 80 PLUS Certification | 80 PLUS Platinum |
| brand name | Enermax |
| protection type | Over Current; Over Voltage; Output Under Voltage; Over Power; Over Temperature; Short Circuit; Surge; Inrush Current |
| Input Voltage | 110 V AC; 220 V AC |
| Input Voltage Type | AC |
| length | 3 in. |
| Output Current | +3.3V - 24 A / 0 A ¦ +5V - 24 A / 0 A ¦ +12V1 - 30 A / 0 A ¦ +12V2 - 30 A / 0 A ¦ +12V3 - 30 A / 0 A ¦ +12V4 - 30 A / 0 A ¦ -12V - 0.5 A / 0 A ¦ +5VSB - 3 A / 0 A |
| form factor | Internal |
| MTBF | 100000 Hour |
| Receptacles | 1 x 24-pin ATX Motherboard; 1 x 4+4pin ATX12V Motherboard; 1 x 8-pin EPS12V Motherboard; 6 x 6+2pin PCI-E; 12 x Serial ATA; 8 x 4-pin LP4 Peripheral Device; 1 x 4-pin SP4 Floppy Drive |
| color | black |
| Modular | Yes |
| warranty length | 5-year limited |
| model name | EPM850EWT |
| Efficiency | 94% |
| Show More ▾ |
